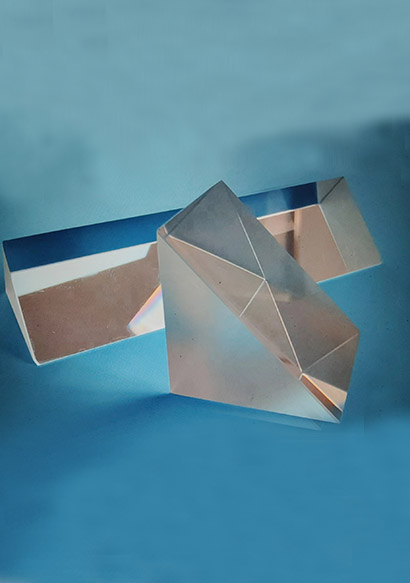

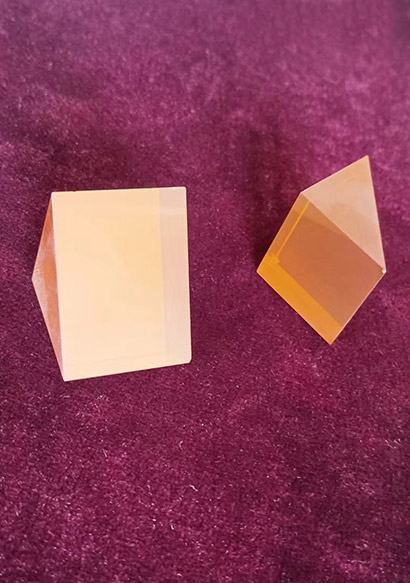

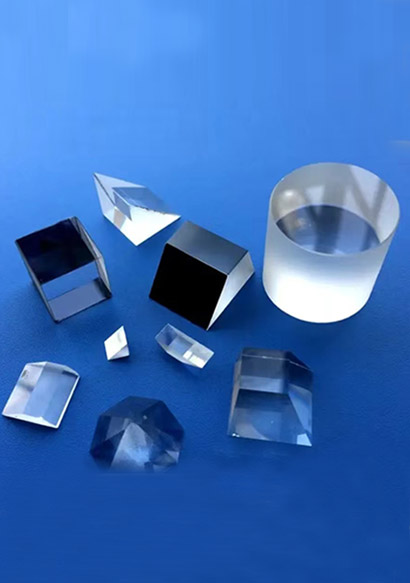

Junbang optics provides custom services for dispersive prisms, total internal reflection prisms, deflection or reflection prisms, diffusion prisms, roof prisms, right angle prisms, etc. . Provide sample parts and mass production.

Introduction

1. Wedge-shaped Prism

A wedge-shaped prism consists of two parallel optical surfaces, usually at an angle of a fraction of a degree. Because of the angle between the two sides, light is deflected out as it enters from one side. Wedge prism is widely used in precision measurement, inertial navigation, laser ranging and other fields.

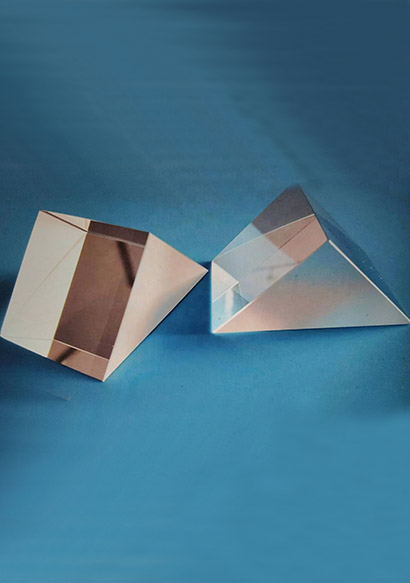

2. Right Angle Prism

A right-angled prism is composed of three optical surfaces perpendicular to each other, two of which are plane and the other plane is bevel, called a semi-reflective surface. When light comes in perpendicular to a flat panel, it is reflected by a semi-reflective mirror, which changes the direction of the light. Right-angled prisms are widely used in fields such as high-precision optical positioning and optical rotation.

3. Prisms

A prism is a prism with five optical surfaces, two of which are triangular bottoms parallel to each other, the other two are rectangular, and the fifth is inclined. Prisms are widely used in microscopes, telescopes, spectrometers and so on.

4. Conical prism

A conical prism is a prism having an annular bottom and a conical top. As the light passes through the bottom of the ring, it is gradually gathered to the top of the cone. The conical prism is widely used in telescopes, microscopes, photographic lenses and so on.

5. Trapezoidal Prism

A trapezoidal prism consists of four optical surfaces, two of which are plane and the other two are inclined, called semi-reflecting surfaces. When light comes in perpendicular to a flat panel, it is reflected by a semi-reflective mirror, which changes the direction of the light. Trapezoidal prisms are widely used in spectrometers, projectors and so on.

Application

The company's Optical Prism are widely used in a variety of fields, including: optical instruments: Optical Prism used to manufacture a variety of optical instruments, such as telescopes, microscopes, cameras, spectrometers and so on. They help control and focus light to get clearer images and more accurate data.

Laser: Optical Prism are also used to make lasers, which use special optical elements to generate, control, and focus laser beams. Optical Communication: optical lens is an indispensable component in optical communication. They are used to make fiber optic connectors, optical amplifiers, optical modulators and so on.

Medical Equipment: Optical Prism are also used in medical equipment, such as eyeglasses, magnifying glasses, microscopes, surgical lasers and so on.

They can help doctors make more accurate diagnoses and treatments. Other fields: Optical Prism are also used in mechanical manufacturing, optical metrology, aerospace and other fields, as well as many daily necessities, such as cameras, telescopes, microscopes, magnifiers and so on.

Parameter

Product name Custom Optical Glass Prism
Material ZnSe/BK7/fused quartz/CAF2/K9 or other optical materials
Dimensional tolerances + 0.1/-0.1 mm
surface L/4 type of surface
Surface quality 60-40 or 40-20 or even better
Bevel 0.25 mm x 45 °
Chamfer standard chamfer
